XLPower Nimbus 550 Nitro Helicopter Kit (Yellow/Red)

High Performance 550 Size Nitro Helicopter

XLPower Nimbus 550 Nitro Helicopter. This sleek pre-painted model designed for hassle-free assembly and maximum flight time. Featuring a proven tapered clutch system for smooth operation and easy alignment, the Nimbus offers a 7.7 gear ratio ideal for demanding maneuvers with 550-580mm blades. Engine maintenance is a breeze with bottom access, while its single-piece aluminum bearing block assembly ensures rigidity and precise control. With innovative features like a 120-degree layout for cyclic servos and dual one-way bearings in the main gear hub, the Nimbus 550 Nitro redefines helicopter flying with efficiency and reliability.

Swash Plate

The nitro version of the Nimbus 550 comes stock with a redesigned upper swash plate to address unequal cyclic and collective differential. Additionally, it includes longer outer swash plate balls to enhance servo to swash plate geometry. These upgrades, along with the updated upper swash plate, maintain the proven effective control ratio seen in the electric Nimbus 550 model.

Clutch

Utilizing a tapered clutch system derived from its larger counterpart, the Nitro 700, the Nimbus 550 Nitro sets a standard for smoothness and alignment in clutch stacks. This advanced system not only ensures unparalleled smooth operation but also simplifies the alignment process, offering pilots an effortless experience when assembling and maintaining their helicopter.

Airframe

At the heart of the airframe lies a robust single-piece 7075 aluminum bearing block assembly and servo mount, enhancing overall rigidity and stability of both the frame and drivetrain. The arrangement of cyclic servos in a 120-degree layout optimizes control geometry for precise handling. Engine maintenance is streamlined with bottom access, allowing for quick removal without disrupting other assemblies, all achievable within minutes. Additionally, the engine cooling fan shroud can be independently removed from the side without requiring disassembly of other parts, further facilitating maintenance tasks.

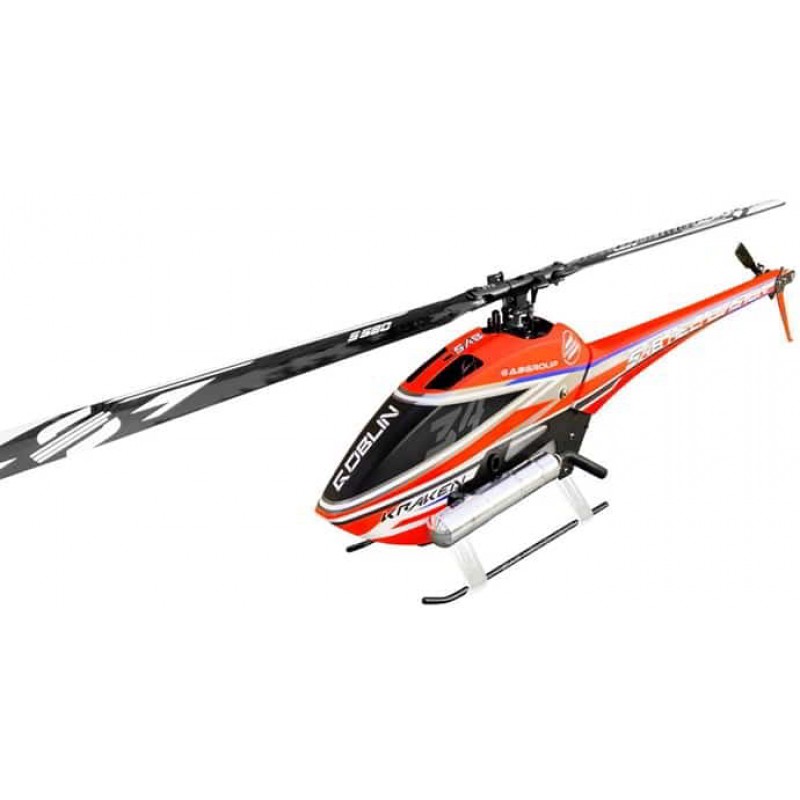

Note: Finished kit shown in the photos is for illustrative purposes only. See needed to complete list below for a list of items required to complete the model.

Features:

• Extremely capable air frame
• High-quality carbon fiber and aluminum construction
• Single-piece 7075 aluminum airframe
• 120° servo layout
• Designed for easy maintenance
• 7.7 gear ratio for optimal rotor rpms
• Engine removal made easy with bottom access mount
• Easy connect canopy locks without safety pins
• Full array of tools including a crank lock and clutch liner gap tool
• Optional parts are available to stretch to 650-size blades with an 8.5 gear ratio

Specifications:

• Length: 45.1in (1148mm)
• Width: 8.1in (206mm)
• Height: 12.4in (315mm)
• Frame Weight: 52.9oz (1500g)
• Feathering Shaft Diameter: 0.39in (10mm)
• Power Type: Nitro
• Level of Completion: Kit*

Includes:

• (1) Nimbus 550 Nitro Helicopter Kit
• (1) Manual

Needed to Complete:

• (1) 2.4GHz Transmitter & Receiver (6-channel or more, helicopter system)
• 550-580mm Main blades
• 95mm Tail blades
• Digital Pitch Gauge
• (1) .50-.60 Size Nitro Motor
• (1) Exhaust Pipe
• (3) Standard Cyclic servos
• (1) Mini throttle servo
• (1) Standard Tail rotor servo
• (1) 3-Axis Flybarless System
• Nitro equipment: Fuel, starter, misc. accessories
• Various tools, lubes & greases for setup and assembly
